Customizable JLD-P03 Board Adopt RK3568 Android11 Linux HD-MI LVDS Embedded Android Motherboard RS232 RS485
Summary of JLD-P03 Embedded Board
The RK3568 android motherboard is a robust, flexible solution for embedded systems requiring reliability, diverse connectivity, and edge AI capabilities. Its industrial-grade features make it ideal for automation, signage, and IoT, while the NPU and OS options cater to developers exploring lightweight AI or multimedia applications. However, high-performance tasks may require more powerful hardware.
| CPU | RK3568 quad-core 2.0GHZ | GPU | Mali-G52 |
| NPU | IT TOPS | OS | Android 11/Linux/Ubuntu/Debian |
| Memory | DDR4 2GB/4GB/8GB | EMMC | 16GB/32GB/64GB/128GB |
Touch Screen
| I2C interface/USB | Display Interface | LVDS,EDP,MIPI |
| Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs | Cash drawer interface | RJ11 6P6C |
| Highlight | POS motherboard Android Motherboard RK3568 Motherboard Pos System Motherboard
|
-
Versatile I/O: 5x serial ports + USB 3.0 + MIPI/LVDS – Connects legacy and modern peripherals.
-
Edge AI Ready: 1 TOPS NPU for on-device inference (e.g., inventory tracking, predictive maintenance).
-
Rugged Design: Survives extreme temperatures, ideal for outdoor/industrial use.
-
Cost-Effective: Scalable RAM/storage options reduce upfront costs for low- to mid-tier projects.
-
Dual OS Flexibility: Android for app ecosystems, Ubuntu for custom Linux solutions.
Feature of JLD-P03 Embedded Board
-
Support LVDS, MIPI, EDP,interface display and i2c touch panel,
-
Rich Interaction: USB, com port, RJ11, Cash drawer interface, Mini PCIE interface, etc.
-
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
-
Strong anti-electromagnetic interference and Electromagnetic compatibility.
-
Compitable for major mainstream manufacturers' POS application software, stable performance.

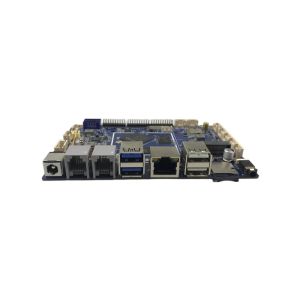

Product interface photos
Main parameters of JLD-P03 Embedded Board
| CPU | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
| Memory | 2G/4G/8G DDR4 optional |
| EMMC | 16G-128G optional |
| Display | Support LVDS,EDP,MIPI |
| Audio Output | Stereo, support Dolby sound effect |
| Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
| Ethernet | 10/100/1000M |
| Wi-Fi | 2.4G/5G WiFi BT |
| OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
| Memory card type | TF-CARD |
| USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs) |
| Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
| RTC | Support power-off clock memory, automatic power on and off |
| Camera | USB camera |
| PCB Size | 125mm*90mm*1.6mm |
| Power supply | DC12V3A input |
| Temperature | -20°- 80℃ |
Apply of JLD-P03 Embedded Board
POS machine, electronic scale, self-service terminal
Product Superiority: Suitable for dual screen POS machine,can do a variety of screen combinations,various interfaces supporting POS
Packing
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
